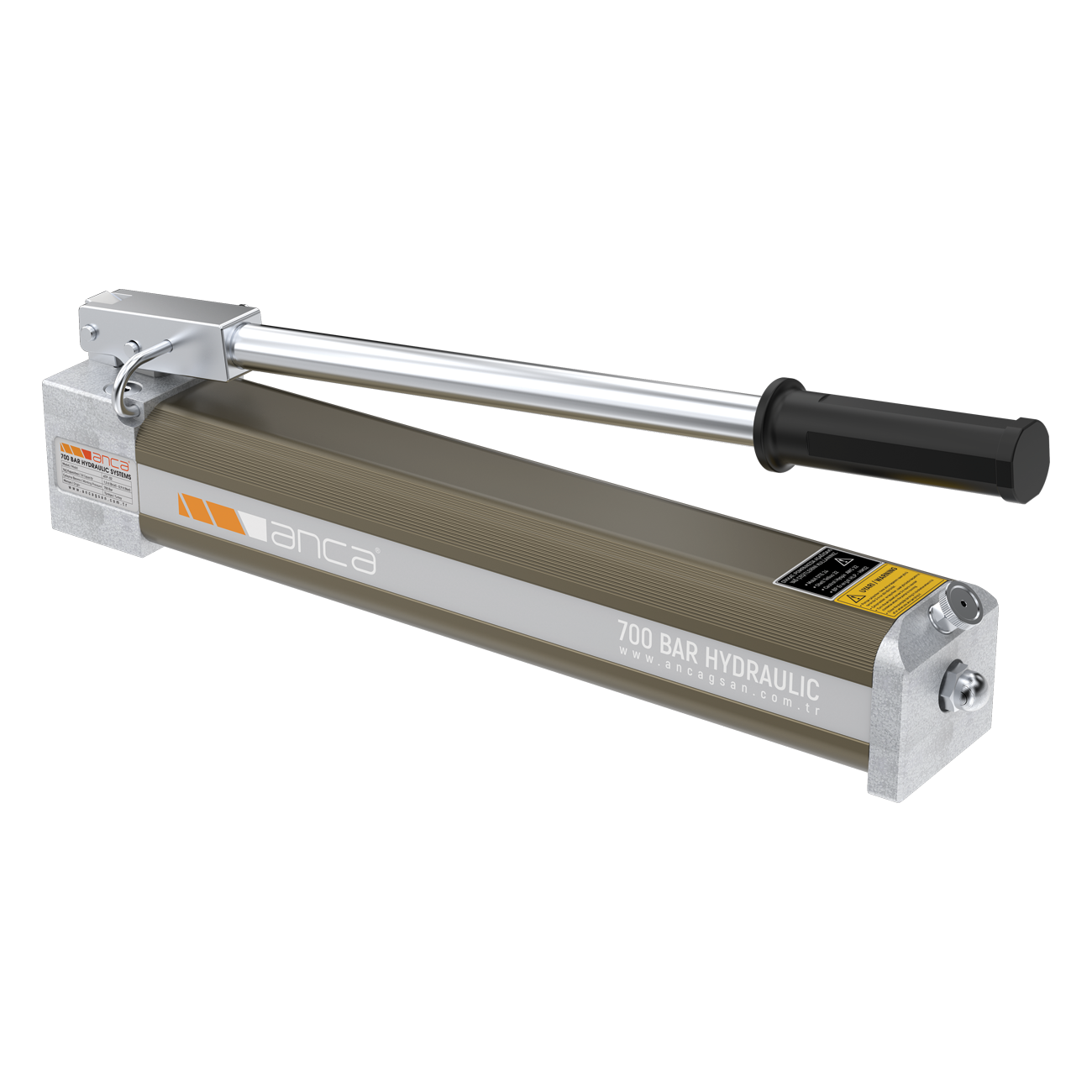

ATP-02

Single Acting, Single Speed, 0,9 Lt

Technical Data

Catalog datasheet

Share on Social Media



General features

In this series of hand pumps with single speed, double speed, single acting, double acting use from 0.5 up to 10.5 liter is provided.
• The pump body is made of high strength aluminium.
• Its lightweight, practical, economical and convenient.
• ACP models with its double acting piston could be operated in double speed and variable flow.
• ATP models offer an economical solution in cases where rare use or small volume cylinders are involved.
• Piston of pump with a special coating technique applied is resistant to abrasion/corrosion assures high durability and lasts long.
• In ACP models, the manometer is supplied with the pump. In ATP models, manometer is included upon request.
• Pump’s pressure relief valve provides safe use by redirecting the oil to its tank at the pressures exceedings 700 bars.
• The pump’s arm could be used in carrying from its lock apparatus.
• Turning the air plug on the oil filler cap 1-2 times during use provides an air exchange between pump’s tank and its environment, thus prohibits inner air to be jammed. Also, when turning off prevents oil leakag.
• Diverter valve (YV-01) attached to ACP models enables doubleacting use.
• Both pump alternatives could be fixed to its desired location via bottom connection holes.

Contact us for a quote.

:
