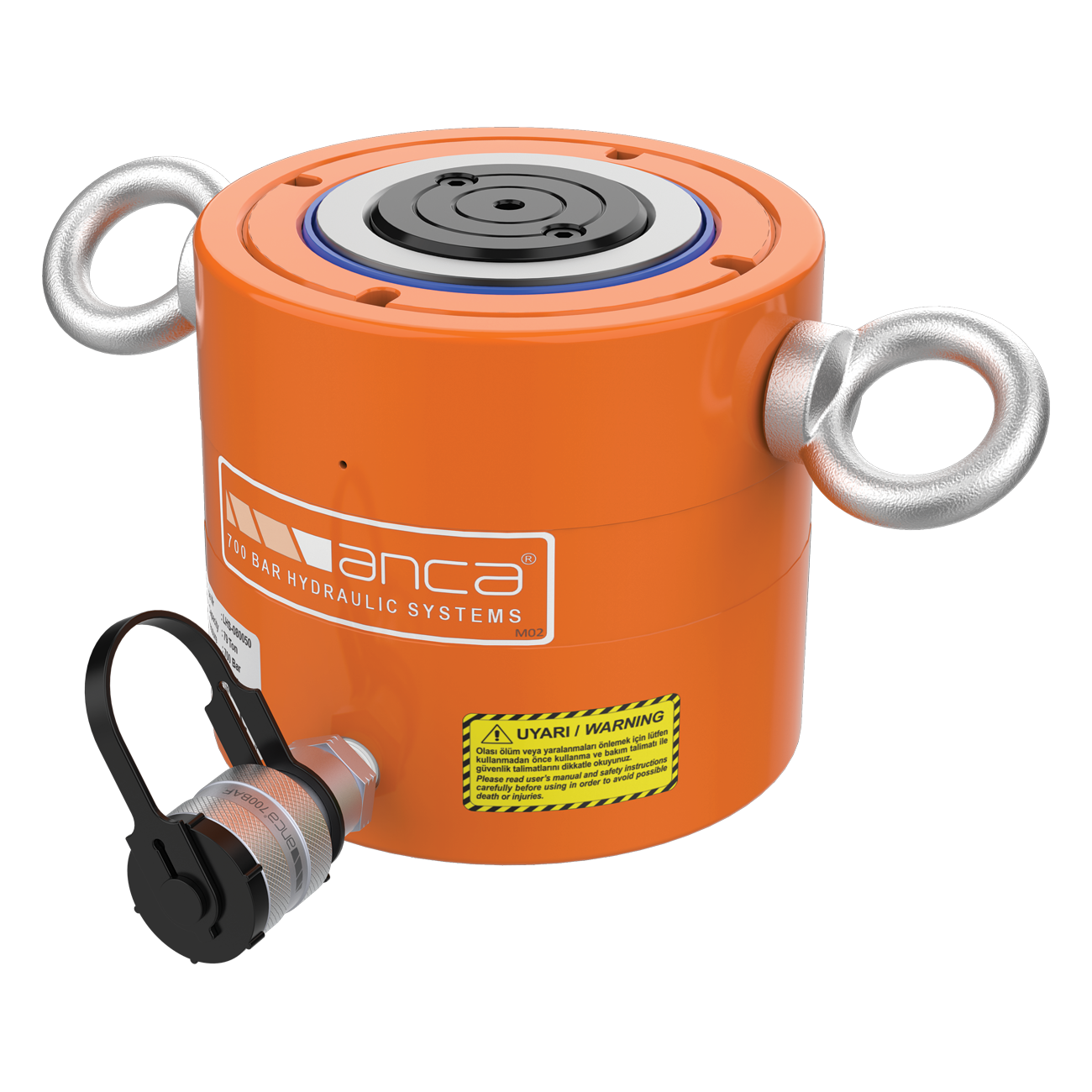

Single Acting, Spring Return, Low Profile Cylinders

Capacity (tons)
Stroke (mm)

*You can download the relevant data sheet by selecting the capacity and stroke values.

Technical Data

Catalog datasheet

Share on Social Media

General Features

• LHS Cylinder groups with their low profile are used in confined regions, and applications where load lifting is required.
• LHS provides greater operating distances compared to LPS group cylinders.
• Plunger Return Spring in all single-acting models prompts retraction of piston thus cylinder retracts to its closed position.

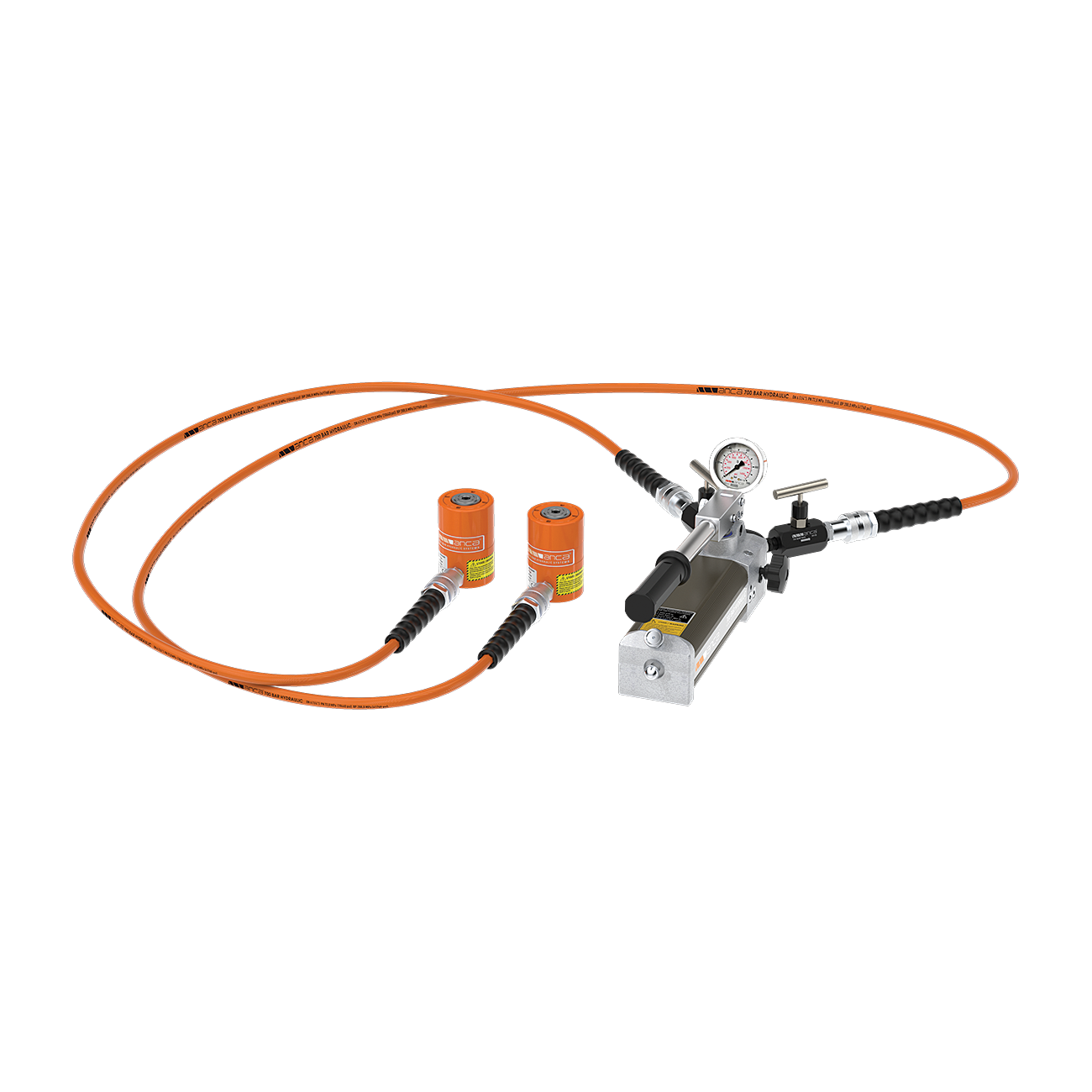

• Cylinder, hose and pump mounting becomes simple with quick couplings.
• Lower-Upper Removable Hardened Saddles, produced out of abrasion-resistant steel, protect its plunger from being damaged by abrasive surface contact and extend cylinder life.
• Corrosion-resistant acrylic undercoat and topcoat paint are applied.

Contact us for a quote.
