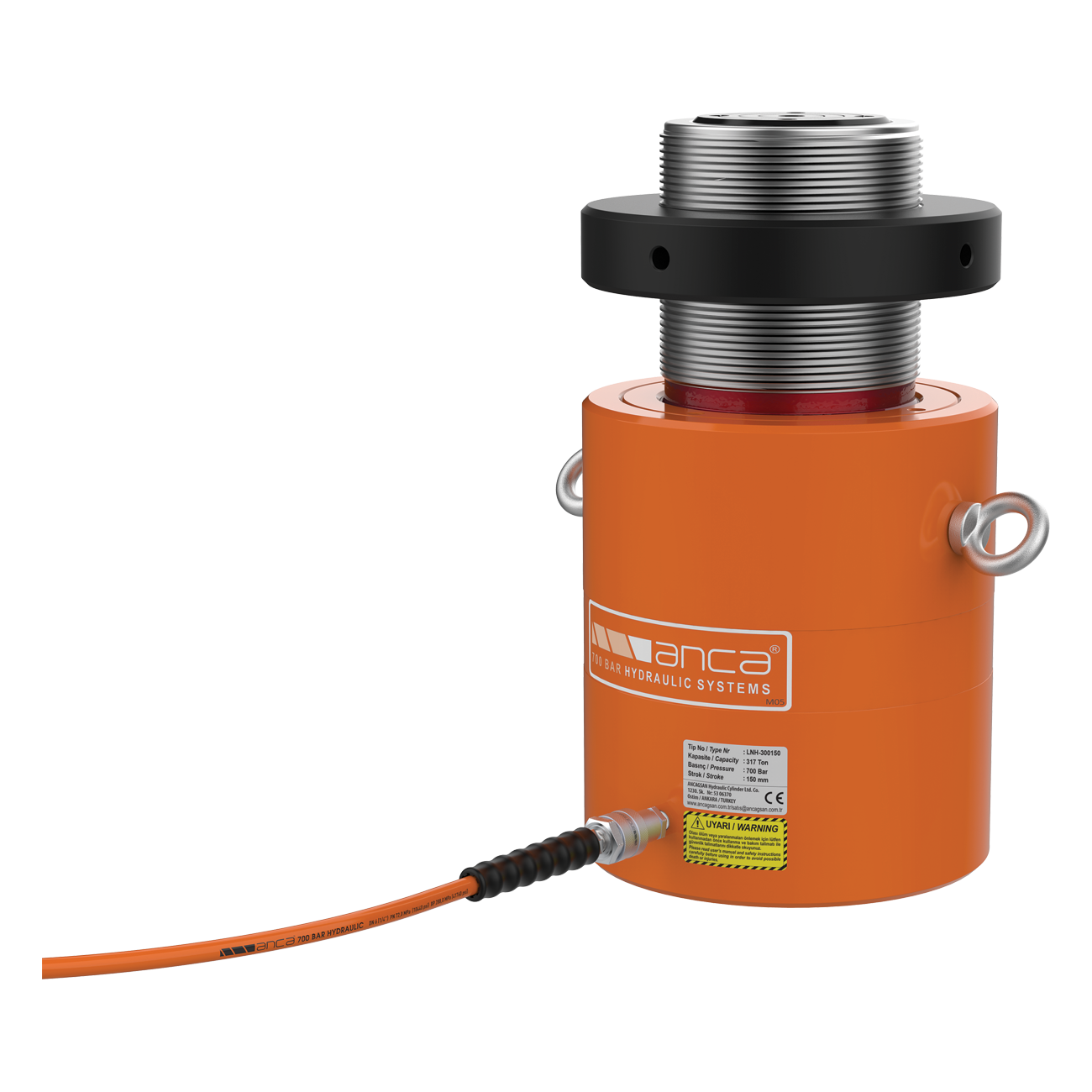

Single Acting, Load Return, Lock Nut, Stop Ring, High Tonnage Cylinders

Capacity (tons)
Stroke (mm)

*You can download the relevant data sheet by selecting the capacity and stroke values.

Technical Data

Catalog datasheet

Share on Social Media

General Features

• LNH Cylinder groups are used in bridges, bridge roads, steel structures, shipbuilding and similar applications where safe load holding over a long period of time is required.
• LNH series provide safe use in large and heavy duties.
• After the full rise of piston, Lock-Nut is fastened on the cylinder surface thereby ensures safe load holding over a long period.
• When lock-Nut is fastened to cylinder surface provides a safe working environment below the load.
• Stop Ring protects the piston during eccentric loads and stops it when maximum stroke distance is reached.
• Cylinder, hose and pump mounting becomes simple with quick couplings.
• The optional removable saddle provides the opportunity of working on surfaces inclined up to 5 degrees.
• Specially plated plunger and barrel ensure extended life cycle.
• Corrosion-resistant acrylic undercoat and topcoat paint are applied.

Contact us for a quote.
