High Pressure Hydraulic Hoses

Technical Data

Catalog datasheet

Share on Social Media


Scope of Application

Used for joining hydraulic system components (cylinders, pumps, equipment) operating at high pressure. Suitable for use in heavy industry and similar difficult conditions


High kink resistance and high flexibility. 4:1 Safety factor. Excellent chemical resistance. Wide range of matched fittings available.

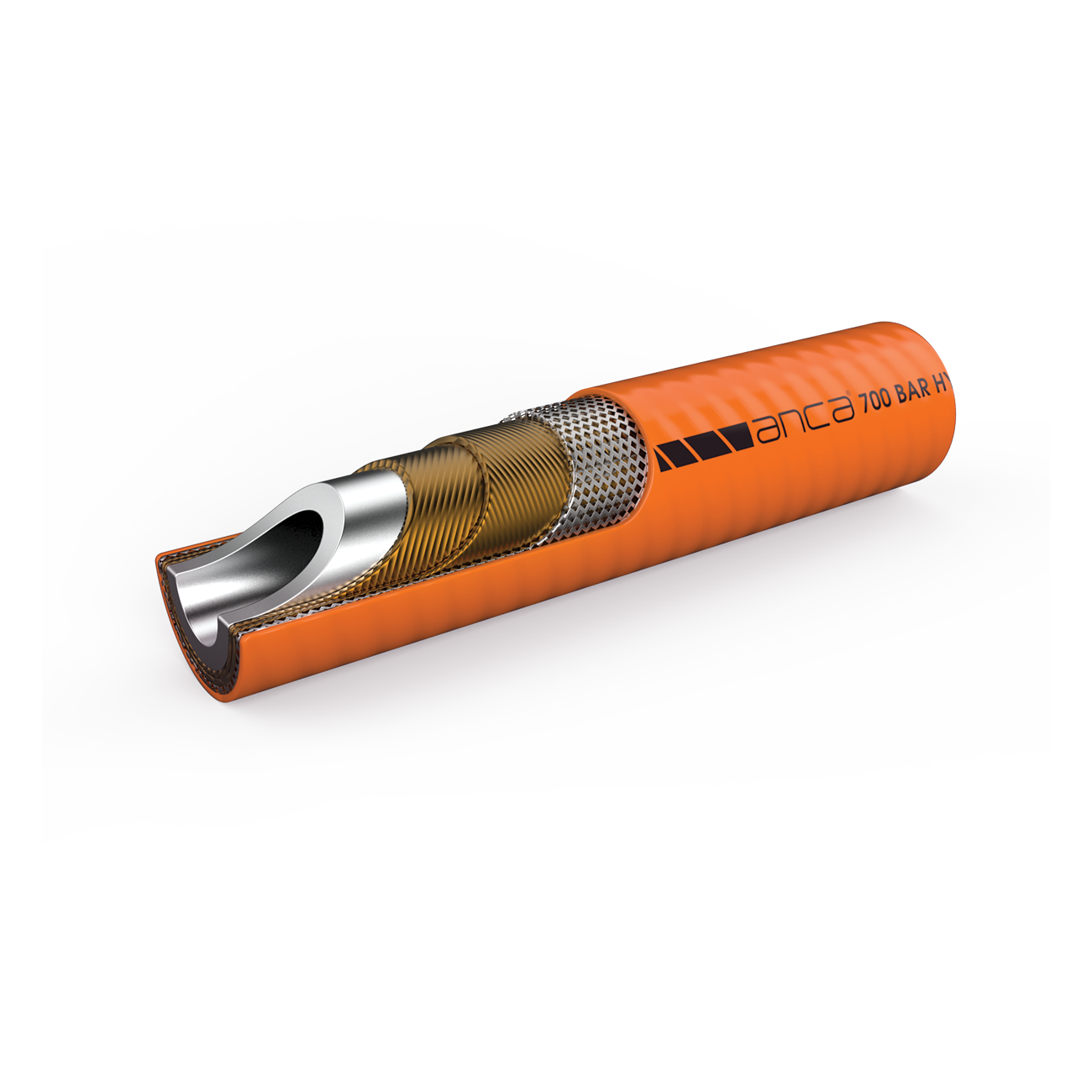

Structural Properties

Inner Material: Polyamide

Pressure Reinforcement: Two spiral layers and two open spiral layers of high tensile steel wire.

Cover: Polyurethane

Colour: ANCA-Orange

Operating Temperature

-40°C up to 100°C


HTX38BE (Male) = Low Carbon Steel, zinc plated.

Contact us for a quote.
